Installing the Modify Shipment Charges Report

* The Modify Shipment Charges report is made available to anyone who has purchased the FedEx Ship Manager or UPS WorldShip integration with e-automate. For more information about these integrations, contact your Account Manager at eainsidesales@ecisolutions.com.

If you are hosting your own installation of e-automate on premise, ECI will send you a Shipping Integration.zip file and a ModifyShipmentCharges.rpt report file.

Note: The name of the Shipping Integration.zip file may include the version number (e.g., Shipping Integration2_0.zip), and this zip file may include the ModifyShipmentCharges.rpt report file.

To install the report, you need to extract the zip file's contents, install the database component via e-admin, and copy the report file to your custom reports folder.

For information on using the report once it is installed, see the Understanding the Modify Shipment Charges Report topic.

Extracting the Zip File's ContentsExtracting the Zip File's Contents

To extract the Shipping Integration.zip file, do the following:

Copy the Shipping Integration.zip file to your server.

Extract the Shipping Integration.zip file's contents into your ECi\e-automate\sql\CompanyDb\_components folder.

Note: The location of your ECi folder may vary. The default location is C:\Program Files (x86)\ECi\.

Note: This process will copy the extracted files into the _components sub folder within the CompanyDb folder. If the _components sub folder does not already exist in that location, create the folder in that location.

Note: The process of unzipping the Shipping Integration.zip file varies. You will use a process similar to the following:

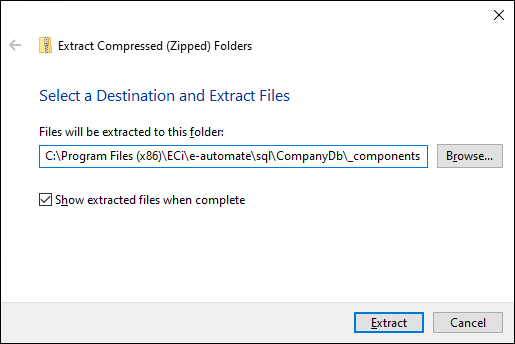

From the location on your server where you copied the Shipping Integration.zip file, right-click the file and select the Extract All... option from the right-click menu. The system displays an Extract Compressed (Zipped) Folders window.

Click the [Browse...] button. The system display a Select a Destination window.

On the Select a Destination window, do the following:

Navigate to the location where you want to extract the files (e.g., ECi\e-automate\sql\CompanyDb\_components).

Note: If the _components sub folder does not already exist in this location, create the folder in this location.

Click the [Select Folder] button to accept the specified folder location and to close the Select a Destination window.

Click the [Extract] button to extract the files to that location and to close the Extract Compressed (Zipped) Folders window. This action copies a Shipping Integration folder into the _components folder.

Installing the Database ComponentInstalling the Database Component

After extracting the zip file's contents to the appropriate folder on your server, install the database component by doing the following:

From the list of companies, select the company with which you want to use the Shipping Integration report.

From the Company menu, select Maintenance > Database Components.... If you have your e-admin toolbar visible, you can use the drop-down menu on [Maintenance] and select Database Components.... You can also use the right-click menu and select Maintenance > Database Components....

Note: This option is only enabled for company databases with a Version of 17.1 or greater. If you want to update database components for a company database with an earlier version number, you will need to update the database before updating its database components. For more information, see the Updating a Database topic.

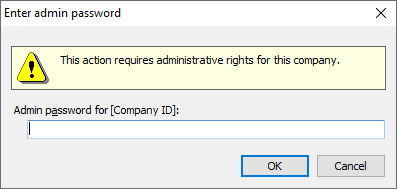

The system displays the Enter Admin Password window.

In the Admin password for [Company ID] field, enter your admin password.

Click [OK]. If the system verifies your admin password for the company you selected, the system displays the Database Components window.

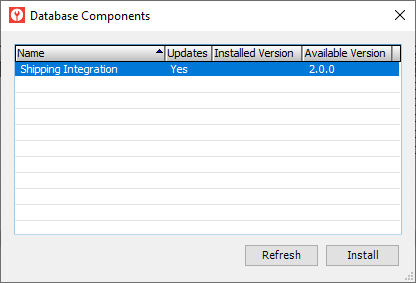

Select the Shipping Integration row.

Note: If you do not see a Shipping Integrationrow, review the "Extracting the Zip File's Contents" section of this topic and verify you have extracted the files to the correct location on the server.

Click the [Install] button. The system displays the Backup Database Location window. Prior to installing a database component, e-admin requires a backup of the database so that you can restore the backup if the database component installation does not complete as expected.

Enter a name for this backup in the File name field.

Note: Your backup name must be unique.

E-admin always displays the last navigated path in the Backup location field. If you want to browse your network for a different backup location, click [(...)] to open the Browse for Backup File... window.
Select the backup location you want to use and click [OK] to return to the Backup database location window. The filename you selected displays in the File name field.

Click [OK]. If you opted to use a file name that has already been used in e-admin, e-admin notifies you that you cannot use the file name identified. Enter a different name.

After the database is backed up, the system attempts to install the database component.

If the installation is successful, the system displays the message, "Installation complete." Click [OK] to acknowledge the message. When you click [OK], the system removes the Yes from the Updates column, updates the Installed Version to the new version, and clears the Available Version column.

Note: If the Database Components window lists additional database components to install, you can install them now. See the Updating Database Components topic's "Installing the Database Component Updates" section for more information.

If the installation is not successful, the system displays an Unexpected Error Information window. Review the Description field.

If the Description field reports only that one or more exceptions occurred, then the system was able to restore the backup you created before trying to install the update; you do not need to manually restore your database.

If the Description field—in addition to reporting that one or more exceptions occurred—includes a NOTICE letting you know you need to manually restore your backup, then the system was not able to automatically restore your backup. You need to restore your backup manually, and the NOTICE lists the name of the backup you created prior to trying to install the update. For information on restoring a backup, see the Restoring a Database topic.

Note: If an error occurs and a database backup is restored, automatically or manually, you will need to re-install any database components you installed after you created the backup.

Copying the Report File to the Custom Reports FolderCopying the Report File to the Custom Reports Folder

To copy the ModifyShipmentCharges.rpt report file to your customer reports folder, do the following:

If your custom reports folder options are already set up, proceed to Step 2 below. If your custom reports folder options are not already set up, set up your custom reports folder options by doing the following:

From the e-automate Tools menu, select Options to open the Options window.

In the left pane of the Options window, click Reports to display the Reports options in the right pane.

To check the applicable Custom Report folder for a custom version of a report to use in place of the standard version of the same report located in the applicable standard Report folder, check the Use report in custom reports folder if it exists checkbox.

To use an alternate Custom Reports folder location instead of the default Custom Reports folder location specified during e-automate software installation, do the following:

Check the Use alternate custom reports path checkbox, enabling the Custom reports folder field.

In the Custom reports folder field, enter the path to the Custom Reports folder you want to use.

Note: To browse for the alternate Custom Reports folder location, do the following:

Click the [...] browse button to the right of the Custom reports folder field to open the Browse for Folder window.

Navigate to the alternate Custom Reports folder you want to use for custom reports.

Click the [OK] button to close this window and to populate the Custom reports folder field with the selected path to the Custom Reports folder you want to use.

Note: Using this option, you can keep all your e-automate custom reports in one networked drive location. Reports processed from client workstations will use the custom report files in this location unless you specify an override Custom Reports folder location on the client machine. For more information, see the Setting Personal Client Settings topic.

Note: If you do not check this box, the system will use the Custom Reports folder location specified during software installation. For on-premise installations, the custom reports folder is located by default at C:\Program Files (x86)\ECi\e-automate\Custom Reports for server installations and at C:\Users\MyUserName\AppData\Local\ECi\e-automate\Custom Reports for client-only installations.

Click the [OK] button to save your changes and to close the Options window.

Note: If you made any changes, e-automate displays an Attention window, indicating that all users must restart e-automate in order for these changes to take effect. Do the following:

Click the [OK] button to acknowledge the message.

Restart e-automate so that these changes will take effect.

If you are running e-agent, restart e-agent as well.

Navigate to the ModifyShipmentCharges.rpt report file.

Note: If the zip file you received includes the ModifyShipmentCharges.rpt report file, the ModifyShipmentCharges.rpt report file will be in the location where you extracted the zip files's contents.

Copy the ModifyShipmentCharges.rpt report file to the applicable custom reports folder location(s) defined in Step 1 above.

To verify the installation is complete, do the following:

From the e-automate Reports menu, select Report Console to open the Report Console window.

In the left pane, click All reports or Custom reports. The system displays the report list in the right pane. The Fixed Asset Changes report should be listed in the right pane. If the system does not display the Shipping Integration report in the right pane, review the previous steps.

Double-click the Shipping Integration report in the right pane to open the report. If the system displays the Shipping Integration window, the installation is complete. If the system does not open the Shipping Integration window, review the previous steps.
